4 VALVE MANIFOLD (R410A) WITH 3X60"HOSES, SIGHT GLASS & 60" VACUUM HOSE

: IMP841CKPSC

: UNIVERSAL

: Huddleston

Login to view price.

files/image_2020_11_25T09_36_54_812Z_1_097f9495-62c8-4e73-9310-2169a4aa7b04.png

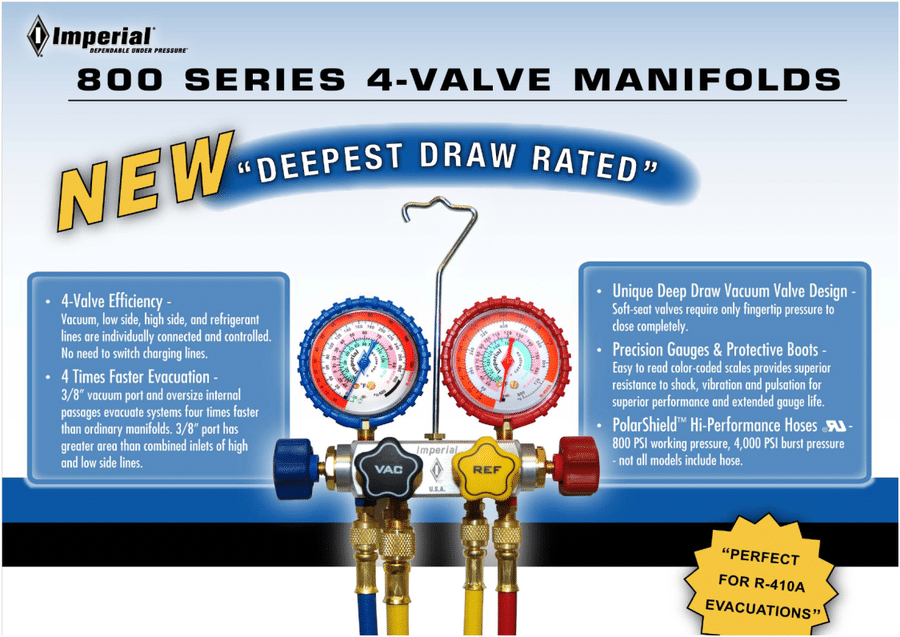

The 841CKPSC is a 4-Valve premium manifold with 68mm gauges and sight glass supplied with 3 x 150cm x 5/16″ Hoses plus 1 x 60″x 3/8″ vacuum. hose & hose hanger.

4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. The 3/8” port has a greater area than combined inlets of high and low sidelines.

FEATURES:
  • 4-Valve Efficiency – Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.
  • 4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds.
  • 3/8” port has a greater area than combined inlets of high and low sidelines.
  • 5/16″ fittings plus 3/8″ SAE Vacuum Port.
  • 3 x 60″ SAE x 5/16″ Hoses plus 1 x 60″x 3/8″ Vac. Hose & Hose Hanger.
  • Four Valve Silver Anodised Manifold with sight glass [R410a] Celcius, KPA and PSI.
  • Unique Deep Draw Vacuum Valve Design – Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to full open/close. Superior for deep vacuum service.
  • Precision Gauges & Protective Boots – Unique design with easy to read colour-coded scales provides superior resistance to shock, vibration and pulsation for superior performance and extended gauge life.
  • PolarShield® Hi-Performance Hoses – 800 PSI working pressure, 4,000 PSI burst pressure.
  • Ergonomic Handles – Durable, soft-touch non-slip surface, even with oily fingers.
  • Swivel Hanger.
